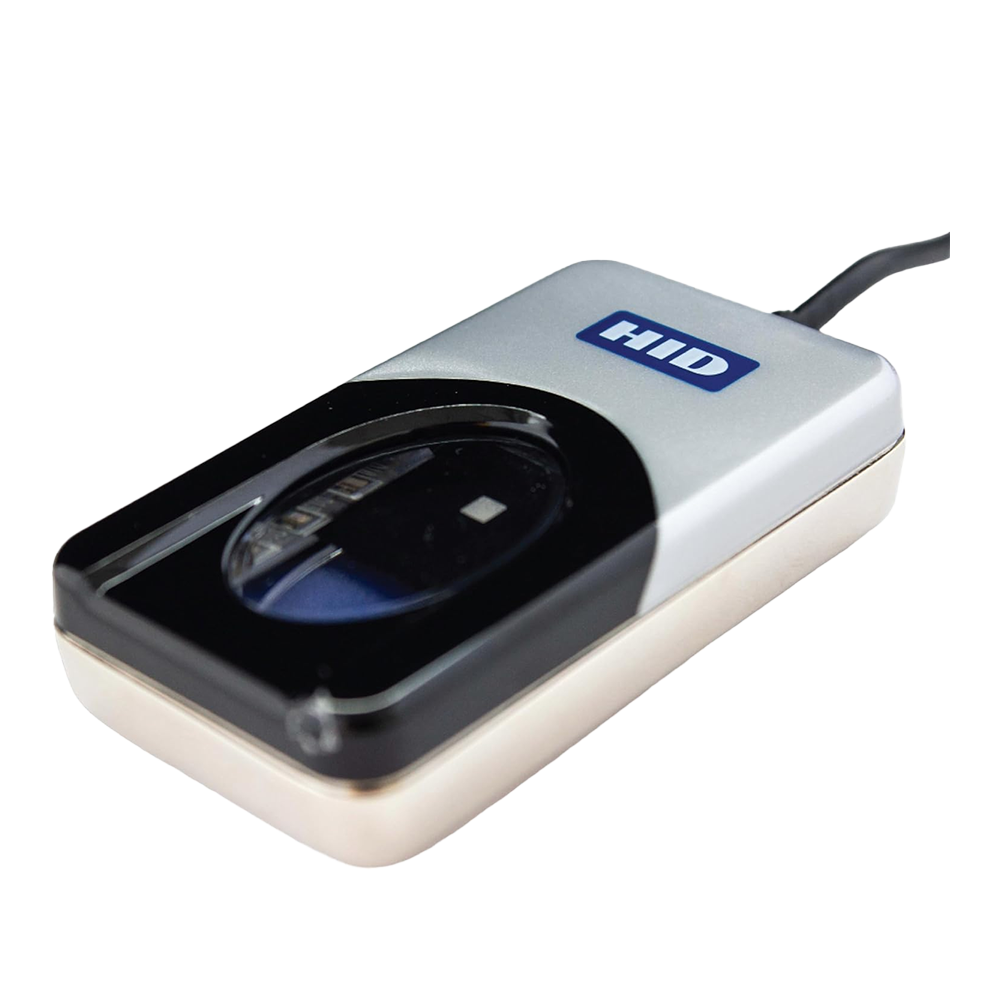

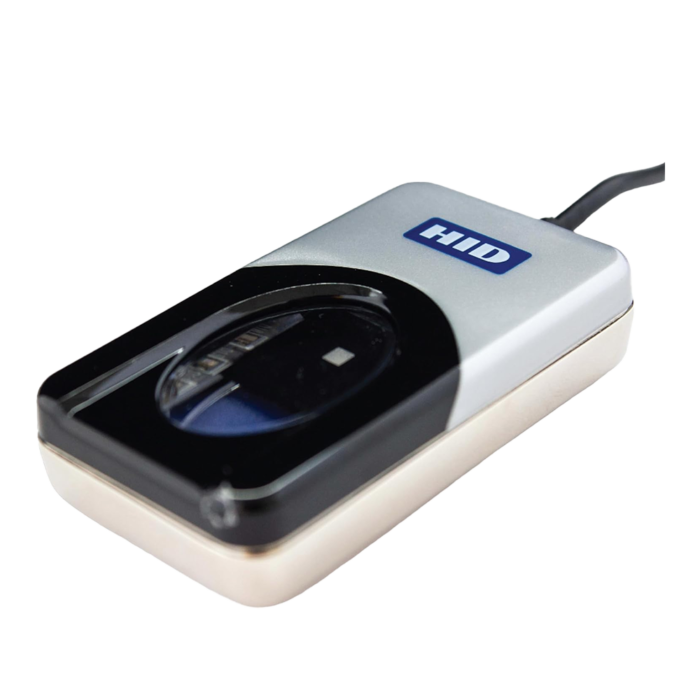

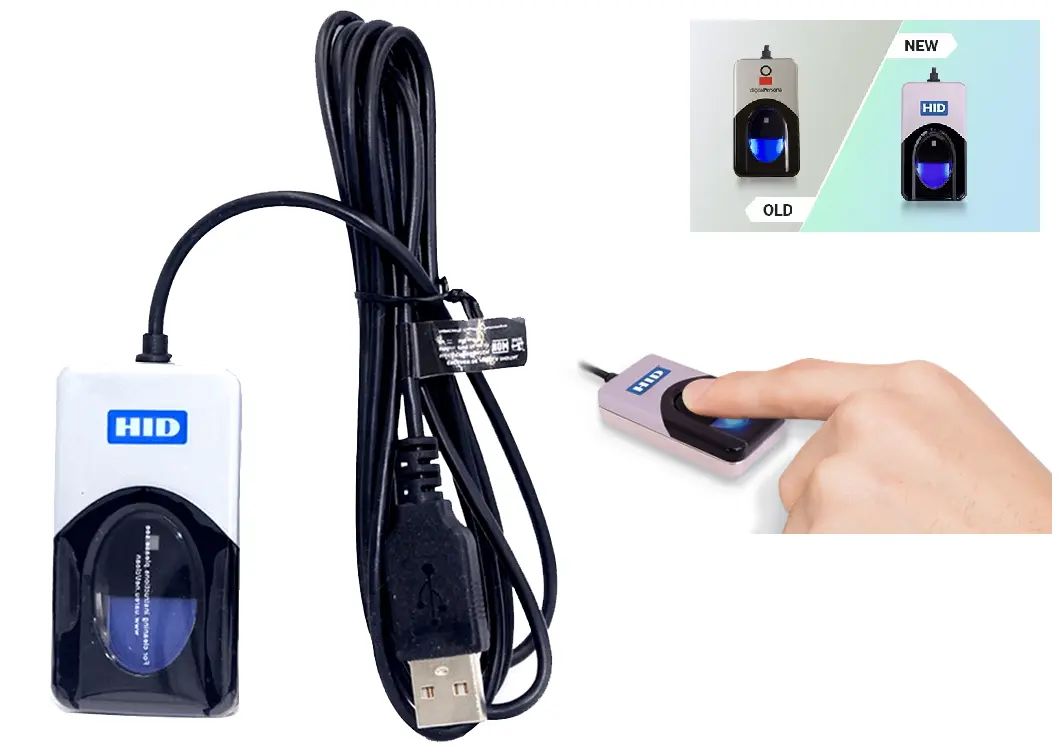

Digital Persona HID4500 Biometric Fingerprint Reader

The U.are.U 4500 Fingerprint Reader UID Edition is a rugged, powerful fingerprint verification and identity machine. It is tailored to the unique form-factor, power, usability and durability requirements for mobile ID devices, particularly those used in public-facing Civil ID applications such as voting, benefits checking, micro finance and general desktop PC security. The U.are.U 4500 Reader UID Edition optically scans the fingerprint when the user touches the glass imaging window. Optical technology offers the highest combination of durability and ease of use. The reader is IP64 rated and sealed against dust and liquids. The U.are.U 4500 Reader UID Edition is STQC certified and exceeds the FIPS 201 Personal Identity Verification (PIV) Image Quality Specification, a key industry standard. It produces 500 pixels-per-inch (ppi) fingerprint images in ANSI and ISO/IEC standard formats. The U.are.U 4500 Reader UID Edition can be used with any standards-compatible fingerprint template extractor or matcher, including the DigitalPersona FingerJet Biometric Engine. The U.are.U 4500 Reader UID Edition and the DigitalPersona FingerJet Biometric Engine provide an unmatched ability to authenticate even the most difficult fingerprints accurately and rapidly.

The Crossmatch U.are.U 5300 is a compact optical single fingerprint reader. The reader is designed to meet the high volume requirements of large-scale civil ID and commercial enrollment and authentication applications. Incorporating a durable glass platen that is also highly resistant to chemical and physical damage, the U.are.U 5300 is well suited for harsh environments. On-board electronics automatically control calibration and data transfer over the USB interface. The U.are.U 5300 can be used with any standards-compatible fingerprint template extractor or matcher.

Benefits of Using SecuGen Peripherals

SecuGen peripherals are easy to use and can be installed quickly on any Windows PC. Backed by the industry's best warranty, years of field use and proven reliability under extreme conditions, SecuGen peripherals provide consistent performance and security for a growing number of software applications for desktop, mobile, network, enterprise and Internet environments. When used for biometric authentication as part of an overall security program, SecuGen peripherals can help reduce the hassles of password overload, decrease the risks of security breaches, improve accountability and add true non-repudiation, all while making it more convenient and intuitive for any user. Look to SecuGen for advanced, fingerprint biometric technologies that let your fingerprints act like digital passwords that cannot be lost, forgotten or stolen. Specification:

Name (Model)	Hamster IV (HSDU04P™, HFDU04™)
Optical Fingerprint Sensor	SDU04P™, FDU04™
Image Resolution	508 DPI
Image Size	258 x 336 pixels
Platen Size	16.1 mm x 18.2 mm
Effective Sensing Area	12.9 mm x 16.8 mm
Fingerprint Capture Speed	0.2 ~ 0.8 second with Smart Capture™ (HSDU04P) 0.4 ~ 1.2 second with Smart Capture™ (HFDU04)
Operating Temperature	-20° ~ 65°C
Operating Humidity	90% or less RH, noncondensing
Dimensions / Weight	27 x 40 x 73 mm / 100 g (without stand)
Supply Voltage / Max. Current	5 V DC / 150 mA
False Acceptance, Rejection Rates	Read our FAQs about FAR and FRR
Interface	USB 1.1 Full-Speed, USB 2.0 Hi-Speed
Warranty	One year limited
Supported Standards	ANSI INCITS 378, BioAPI, FIPS 201 (PIV) (view PDF), ISO/IEC 19794-2, ISO/IEC 19794-4, SP 800-76 (view PDF)
Certifications	FCC, CE, RoHS, FBI (more info), GSA FIPS 201 APL (more info), STQC for UID (more info)
Supported Operating Systems	Windows 8.1 / 8 / 7 / Vista / XP / 2000 / 9x Windows Server 2012, 2008 R2, 2003 Android (supported model: HSDU04P only), Java, Linux
